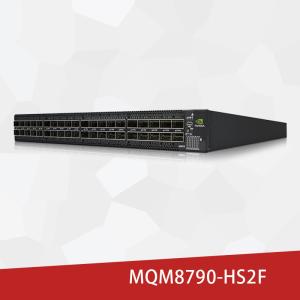

Mellanox Network switch MQM8790-HS2F 40-port Non-blocking Externally Managed HDR 200Gb/s InfiniBand Smart Switch
MQM8790-HS2F Mellanox Network switch Product Description
The QM8700 and QM8790 fixed-configuration switches are designed to enableNVIDIA In-Network Computing offload engines through NVIDIA ScalableMQM8790-HS2F Faster servers, combined with high-performance storage and applications that use increasingly complex computations are causing data bandwidth requirements to spiral upward. MQM8790-HS2F As servers are deployed with next generation processors, High-Performance Computing (HPC) environments and Enterprise Data Centers (EDC) will need every last bit of bandwidth delivered with next generation of HDR InfiniBand, high-speed, smart switches.
MQM8790-HS2F Built with Quantum InfiniBand switch device, the QM8790 provides up to forty 200Gb/s ports, with full bi-directional bandwidth per port. MQM8790-HS2F These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters.
ENEFITS
–– Industry-leading switch platform in performance, power, and density
–– Designed for energy and cost savings
–– Collective communication acceleration
–– Maximizes performance by removing fabric congestions
–– Backward compatible to previous speeds
–– Quick and easy setup and management
KEY FEATURES
–– Performance
• 40 x HDR 200Gb/s ports in a 1U switch
• 80 x HDR100 100Gb/s ports (using splitter cables)
• 16Tb/s aggregate switch throughput
• Sub-130ns switch latency
–– Optimized design
• 1+1 redundant & hot-swappable power
• N+1 redundant & hot-swappable fans
• 80 gold+ and energy star certified power supplies
–– Advanced design
• Adaptive routing
• Congestion control
• Collective offloads (Mellanox SHARP technology)
• VL mapping (VL2VL)
MQM8790-HS2F Mellanox Network card Parameter form
| item | Features |
| Transmission Rate | 200Gb/s |
| Communication Mode | Full-Duplex |
| Function | LACP, QoS, SNMP, Stackable, VLAN Support |
| Switch Capacity | 16Tb/s |
| Performance | 200Gb/s per port |
| Switch radix | 40 non-blocking ports with aggregate data throughput up to 16Tb/s |
| Connectors | QSFP56 |
| System memory | Single 8GB |
| Technology | InfiniBand |
| Brand Name | Mellanox |
| Model | Mellanox Network Switch MQM8790-HS2F |
| Form factor | 1U |
| Ports | 36 QSFP28 ports |
| Switching capacity | 8.4 Tbps |
| Maximal data rate | 5.76 Bpps |
| Latency | 90 ns (InfiniBand) / 300 ns (Ethernet) |
| Power consumption | 540W (typical) / 800W (max) |
Key Features
Performance
40 x HDR 200Gb/s ports in a 1U switch
80 x HDR100 100Gb/s ports (using splitter cables)
16Tb/s aggregate switch throughput
Sub-130ns switch latency
Optimized design
1+1 redundant & hot-swappable power
N+1 redundant & hot-swappable fans
80 gold+ and energy star certified power supplies
x86 ComEx Broadwell CPU
Advanced design
Adaptive routing
Congestion control
Collective offloads (SHARP technology)
VL mapping (VL2VL)
