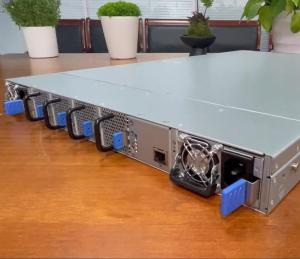

Mellanox Network Switch IB 2 Based EDR 1U Switch 36 QSFP28 Ports MSB7890-ES2F
MSB7890-ES2F Mellanox Network switch Product Description
Mellanox MSB7890-ES2F Switch IB 2 Based on EDR Infiniband 1U Switch 36 QSFP28 Port 2 Power Supply AC Unmanaged Standard Depth P2C Air Rail Kit RoHS6 36 port non blocking external management EDR 100Gb/s InfiniBand intelligent switch network provides the world's first intelligent switch, and implements intra network computing by jointly designing scalable hierarchical aggregation and reduction protocol (SHARP) technology.
MSB7890-ES2F Mellanox Network card Parameter form
| item | Features |
| Communication Mode | Full-Duplex & Half-Duplex |
| Function | LACP, QoS, SNMP, Stackable, VLAN Support |
| Transmission Rate | 100GB/S |
| Function | INFINIBAND |
| Brand Name | Mellanox |
| Max Speed | EDR |
| Connector Type | QSFP28 |
| Model | MSB7800-ES2F |
| Ports | 36 |
| Ports | 48 SFP+ ports (10GbE/40GbE), 6 QSFP+ ports (40GbE/100GbE) |
| Switching Capacity | 2.88 Tbps |
| Forwarding Rate | 2.14 Bpps |
| Latency | 230 ns |
| Buffer Size | 16 MB |
| VLANs | 4,096 |
Features
* Performance
36 x EDR 100Gb/s ports in a 1U switch
2.88Tb/s aggregate switch throughput
230ns switch latency
* Optimized design
1+1 redundant & hot-swappable power
N+1 redundant & hot-swappable fans
80 gold+ and energy star certified power supplies
* Advanced design
Adaptive routing
Congestion control
VL2VL mapping
Collective offloads (SHARP technology)
